Our system supports multiple industry-standard file formats to ensure compatibility with your existing infrastructure and future needs.

Supported Export Formats:

KFB/KFBF – Native high-resolution format from KFBio.
TIFF – For use in image analysis and archiving.
DICOM – Compliant with WG26 for integration into PACS.
SVS – Widely used format for pathology image analysis.
QPTIFF – Multi-channel TIFF format designed for quantitative fluorescence image analysis.

Integration:

Compatible with hospital LIS, PACS, and third-party AI platforms.
Supports structured data export for research and regulatory workflows.

Benefits:

Smooth interoperability with minimal conversion.
Future-proof with international digital pathology standards.

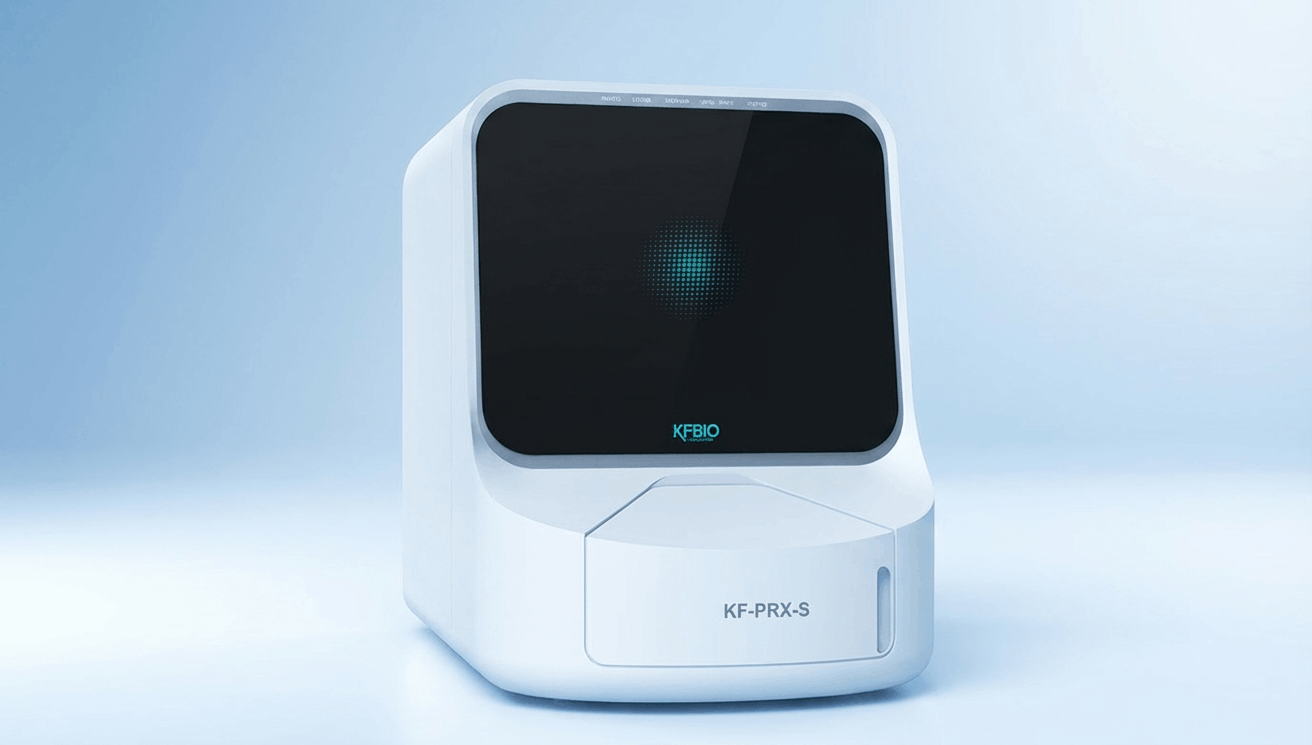

Our scanner models deliver exceptional speed and image quality, making them ideal for both high-throughput labs and demanding research settings.

Brightfield Specs:
- Magnification: 20x & 40x
- Resolution: 0.25 μm/pixel @ 20x, 0.125 μm/pixel @ 40x
- Speed: 15 sec/slide @ 20×, 25 sec/slide @ 40×
- Output Formats: KFB, SVS, DCM, TIFF

Fluorescence (for supported models):
- Speed: ≤6–12 min/slide depending on number of filters
- Camera: sCMOS
- Resolution: Same as brightfield
- Output Formats: KFBF, QPTIFF

Advanced Features:
- Scanning area: Up to 100mm × 50mm
- Z-Stack: Up to 10 layers
- Field of View: 1mm

Benefits:
- High-speed scanning with uncompromised image detail
- Suitable for both routine diagnostics and advanced research applications

Our fluorescence scanning module supports up to 10 customizable channels, enabling high-resolution, multi-spectral imaging for a wide range of research and molecular pathology applications. Compatible with popular dyes such as DAPI, FITC, Cy3, Cy5, and more.

For detailed wavelength specifications and channel configurations, please contact our sales team.

Our AI-assisted scanning optimization is managed by our expert engineering team. By using preview images from your lab, we train and fine-tune scanning models that are tailored to your sample characteristics. This approach significantly improves scan accuracy while minimizing the traditional trial-and-error process performed by users.

🔧 How It Works:
1. Users provide preview images from their typical slide samples.
2. Our factory engineers train AI models to optimize scanning parameters based on this data.
3. The optimized model is then deployed to your system, ensuring high-quality results without requiring user-side AI interaction.

🛠️ Engineering Support:
- Remote or on-site configuration by our technical team.
- Rapid model deployment after initial image sampling—much faster than traditional manual adjustments.
- Ongoing software updates and system tuning provided by factory experts.

✅ Benefits:
- High scan accuracy tailored to your lab’s actual sample conditions.
- Minimal setup time compared to conventional manual calibration.
- No need for users to manage AI models—fully handled by our factory team.
- Consistent and reliable scanning performance from day one.

Our solution combines the precision of KFBio scanners with a powerful Digital Slide Management System, forming a fully integrated, closed-loop ecosystem. This system streamlines the entire pathology workflow—from slide scanning and archiving to diagnosis and collaboration.

Key Functions:
- Unified Device & Data Flow: Real-time monitoring and management of scanners.
- Slide Management: Structured archiving, smart labeling, and easy retrieval.
- Smart QC: AI-based quality checks for blur, folds, and artifacts.
- Diagnosis & Collaboration: Split-screen HE/IHC comparison, multi-level task assignment.
- Web-based Access: Secure, browser-based platform accessible across departments.

Benefits:
- Centralized control with minimal IT complexity.
- Seamless integration with LIS and PACS.
- Scalable for clinical, research, and education environments.

Learn more about the Digital Slide Management System (DSMS)
